The Apple-1 Registry

List of all original Apple-1. If you are a first time visitor and not familiar with iconic Apple-1 computers, please read all the information first.

Go to previous entry #2   -   Go to next entry #4
Note: This is the 3th entry in the list, and not the 3th Apple-1 produced. The Apple-1 does not have a regular serial number. Only some Apple-1 have a handwritten serial number.

'Apple ad 1' Apple-1 - number 3 in the Registry

3 pictures published.

Version

1st batch
Wave-soldered mainboard

Serial number, stamp, label

backside unknown

Location

unknown

Verification

Might no longer exist.

Description

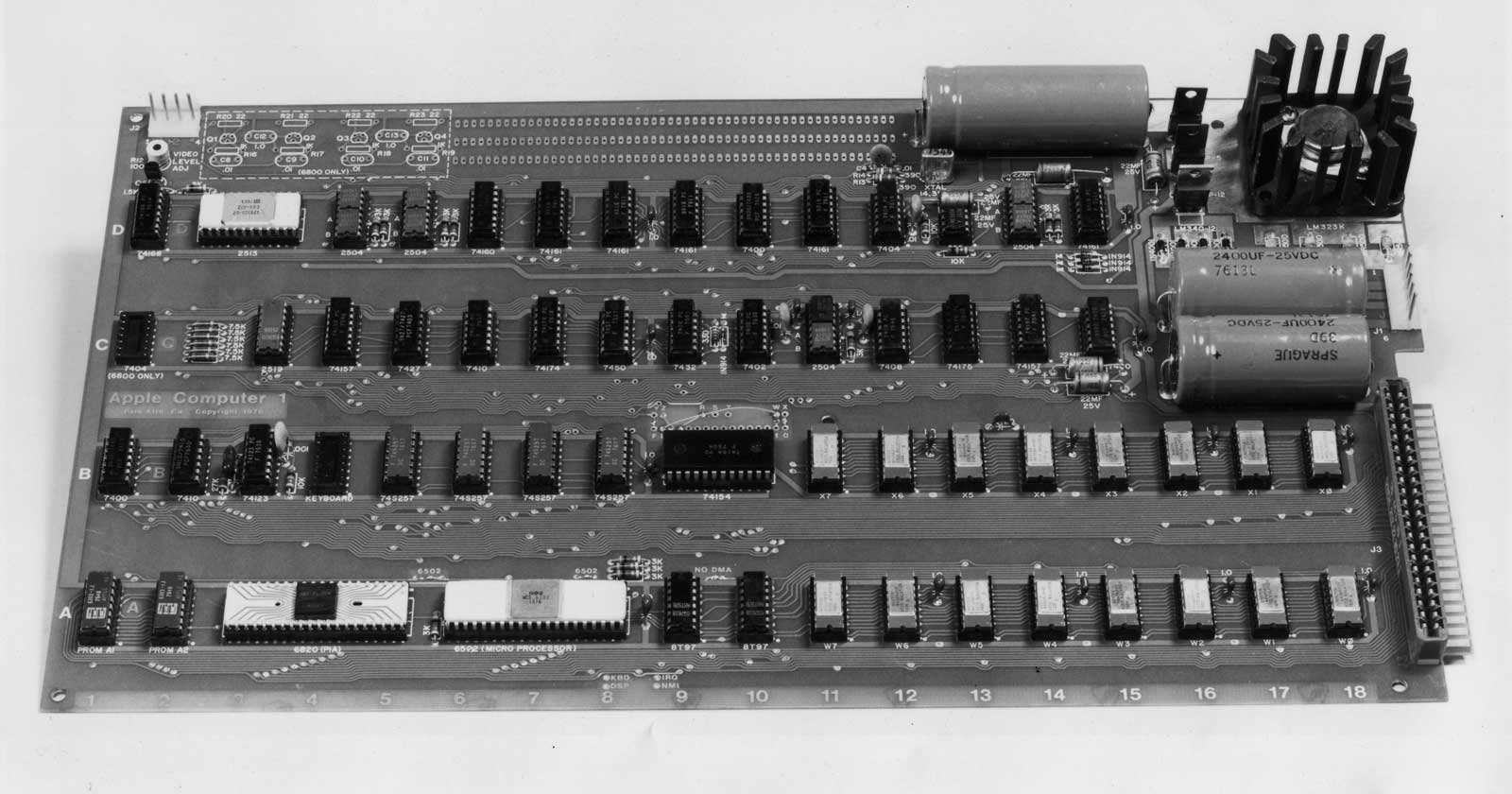

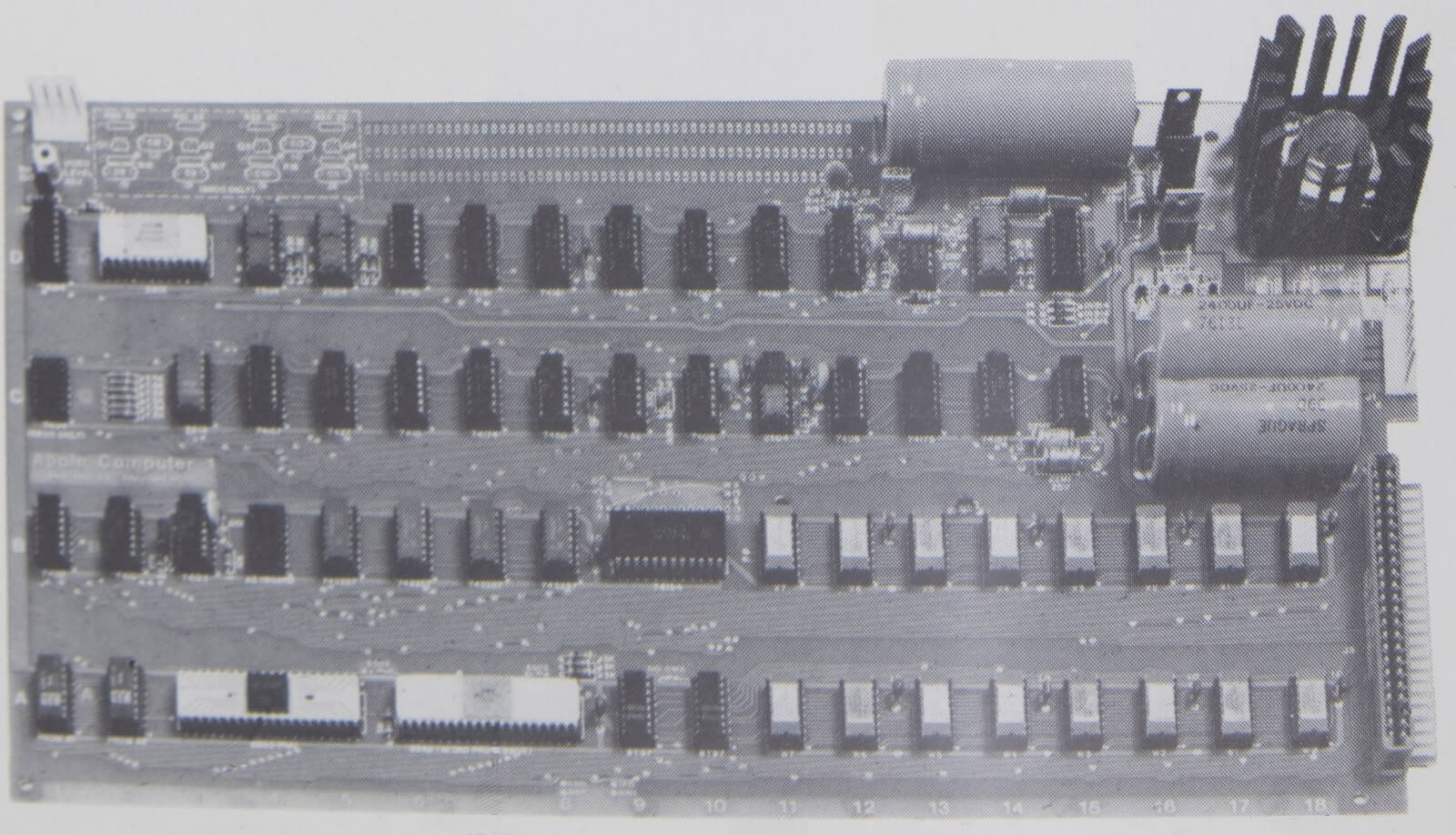

The close-up image of the board was provided by Wendell Sander, who found it in his stash of old Apple items. It is apparently the same image used in the ad. The original picture is sharp enough to easily read all the date codes on the chips. This board is unique in that it doesn't have the NTI logo on the PCB, but it has the same capacitors as used on later NTI boards. The white 2513 is a GI part. The 2504 date codes are newer than those on some first-run boards.
This and Liza Loop's machine are the only units known to exist with a white 6820. However, Liza's has ceramic disc capacitors, and this one doesn't, so they are clearly two different machines.


History

It is not known if this unit still exists.
This is probably a board built especially for the advertisement, as no known board has this combination of components.


Auctions

no auction
(see History for more information)


Components

White ceramic MOS MCS 6502 CPU (1576), white ceramic AMI PIA, 8 KB ceramic Mostek MK4096-11 DRAM (7604), white ceramic 2513 (7601), 3 big blue capacitors. Ceramic PROMs.
ICs have date codes between 1974 and the 20th week of 1976 (the 2519 and 2504v's with 7620 are the 'youngest'). Not as many disc capacitors as on all first-batch boards.


Last update

Jul 29, 2025


Change log (since March 20, 2018)

Nov 15, 2018: Components
Jun 19, 2021: Description
Jun 20, 2021: 1 picture(s) added
Jul 29, 2025: Components. Description. History
